Amerec AK4

AK Series 4.0KW Steam Bath Generator, Amerec

Model
AK4

The Amerec AK4 steam bath generator from the AK Series boasts a 4 kilowatt power rating and is made for home steam baths with dimensions between 1 to 75 adjusted cubic feet.

The AK4 Amerec steam generator features a stainless steel tank, industrial grade heating elements, modular “snap-in” control connections, durable electronic components, an electronic water-level control system, and an assortment of other features. The Amerec AK4 steam bath generator has a compact design measuring 13” tall, 16-1/2” wide, and 6-1/4” deep. The AK4 unit can be installed in a cabinet, closet, or vanity.

The AK4 unit by Amerec requires the use of a K60, KT60, or DKT60/K60 control package. The AK4 steam generator can also be used with the R30K 30-minute timer. Each package comes with a steam shower generator control and a matching finish steam head. The K60 control allows bathers to control the steam shower bathing duration and temperature of the AK4 generator. The K60 control also saves the temperature and time after each use in order to make it easy for bathers to set their steam bathing experience.

We recommend purchasing an Amerec ADK Automatic Drain System with your AK4 unit. The ADK system drains your steam generator after each steam bath in order to help prevent calcification and lime build-up.

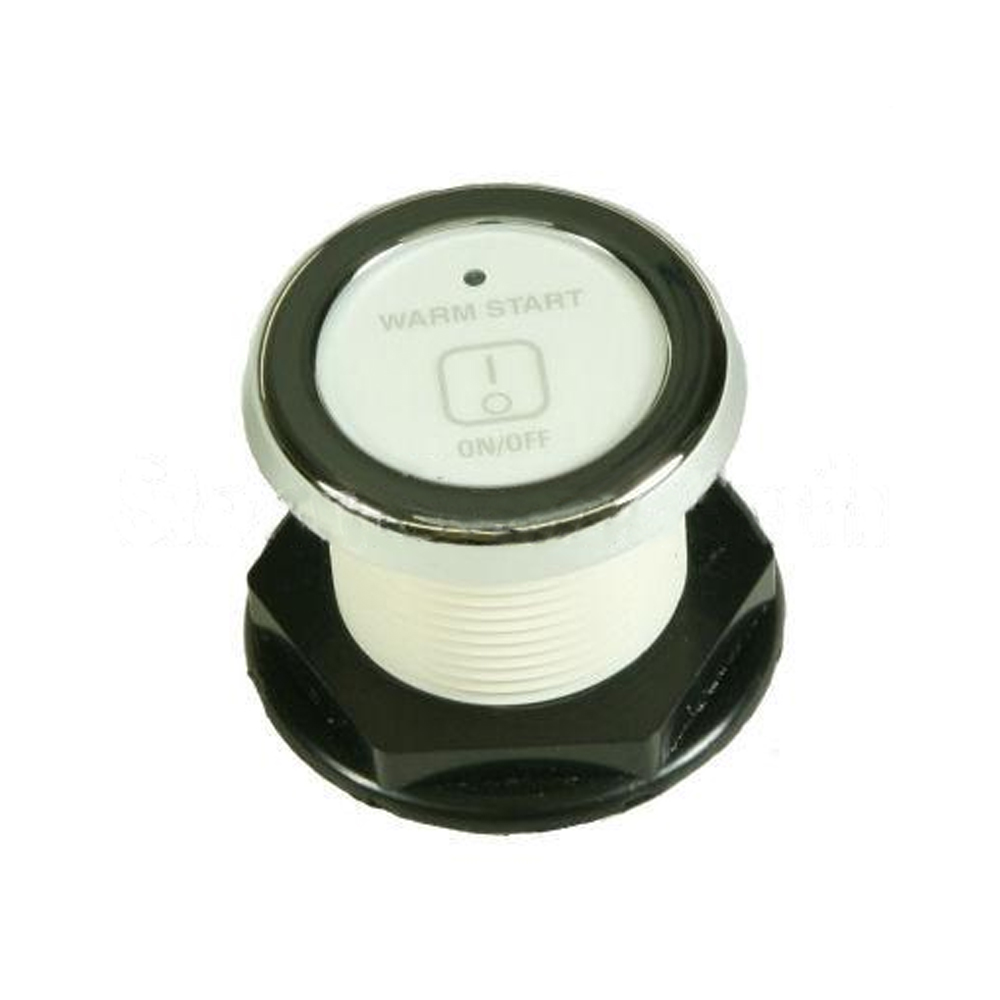

Consider the optional Warm Start feature with the AK4 steam bath unit for pre-heat functionality. The Amerec AK4 residential steam shower generator allows bathers to enjoy the benefits of steam bathing in the comfort of their home.

Bathing Enthusiasts! We will help you produce the steam shower, sauna room, or enhanced bathing space of your dreams. SteamSaunaBath offers bathing space design, installation, maintenance, and repair services for residential and commercial facilities. We help homeowners, health clubs, and spas across the nation create awe-inspiring bathing spaces. Call us at (800) 707-2862 or email us at ProjectCoordinator@SteamSaunaBath.com. Our expert steam and sauna Project Coordinators look forward to assisting you through this creative experience.

  • Stainless steel tank
  • Industrial grade, serviceable heating elements
  • Modular "snap-in" control connections
  • Durable electronic components
  • Electronic water-level control system
  • Low voltage safety control circuits
  • Available Auto Drain automatic draining system
  • Operates with inside/outside shower, on/off, time/temperature controls
  • Full port drain valve
  • ASME safety valve
  • UL/CSA/CE listed
  • Installation and operation manual
  • Limited warranty
Swipe horizontally to reveal full table content.
Model AK4
Minimum Adjusted Cubic Feet 1
Maximum Adjusted Cubic Feet 75
Kilowatt Rating 4 KW
Shipping Weight 27 lbs
AC Voltage 240V AC
DC Voltage 5V DC
Phase Single Phase
Nominal Amperage 17 Amps
Recommended Protective Device 25 Amp
Recommended Minimum Copper Wire Supply 10 AWG
Water Supply Connection 3/8" NPT
Generator Steam Line Connection 1/2" NPT
Steam Head Connection 1/2" NPT
Drain Connection 1/2" NPT
Safety Relief Valve Connection 3/4" NPT
Safety Relief Valve 10 PSIG
Control "Rough In" Cut Out 2-3/8" Diameter
Control Sensor Cable 25', 2 Conductor, 22 AWG, Shielded Cable
Control Sensor "Rough In" Cut Out 7/8" Diameter
Generator Control Connection 8 Pin, Snap-In Connector
Generator Control Cable 25', 8 Conductor, 28 AWG, Shielded Cable
Width 16-1/2"
Depth 6-1/4"
Height 13"
Required for Operation
K60 Digital Control Package, Amerec
Model
MS225E
SKU
9101-107

When installed with an Amerec AK Series steam generator, the Amerec K60 digital control package uses an easy-to-use touch pad to maintain the steam room environment.

MSRP
$780.00
Your Price
$546.00

KT60 Digital Control Package, Amerec
Model
MS225E
SKU
9111-106

When installed with an Amerec AK Series steam generator, the Amerec KT60 digital control package features an easy-to-use membrane touch pad to control the steam bath.

MSRP
$760.00
Your Price
$532.00

DKT60/K60 Dual Control Package, Amerec
Model
MS225E
SKU
9113-106

The Amerec DKT60/K60 steam shower package is designed to be installed with Amerec AK Series steam generators.

MSRP
$1,355.00
Your Price
$948.50

30-Minute Timer, Amerec
Model
MS225E
SKU
9141-107

Designed to be installed with Amerec AK Series steam generators, the Amerec R30K steam shower control is an easy-to-use 30-minute press on timer with indicator light.

MSRP
$265.00
Your Price
$185.50
