Amerec AK4.5
AK Series 4.5KW Steam Bath Generator, Amerec
The Amerec AK4.5 steam bath generator from the AK series features a 4.5-kilowatt rating and is made for home and day spa steam baths between 60 to 90 adjusted cubic feet (ACF).
Made of durable stainless-steel, the Amerec AK4.5 is engineered to provide years of safe and maintenance-free operation. The AK4.5 steam shower generator features industrial-grade heating elements, modular snap-in control connections, durable electronic components, an electronic water-level control system, and a variety of other features. The compact design of the generator installs conveniently in cabinets, closets, vanities, and other similar locations.
The AK4.5 generator comes in 240V (9012-100) or 208V (9012-200) and can be field wired for single-phase or three-phase configurations.
When designing this generator, Amerec focused on ensuring the most even and consistent steam production and temperature each bathing session. To accomplish this, the Amerec AK4.5 uses a Sequential Temperature Control resulting in a consistent flow of soft steam and a more pleasurable experience.
The Amerec AK4.5 steam generator requires the use of the available KT60, K60, or DKT60/K60 control which regulate bathing duration and temperature, or the R30K 30-minute timer. Each control package comes with a matching finish ComfortFlo steam head.
We recommend purchasing Amerec’s ADK Automatic Drain System with your AK4.5 unit which drains the steam generator tank after each steam bath to help prevent calcification and lime build-up.

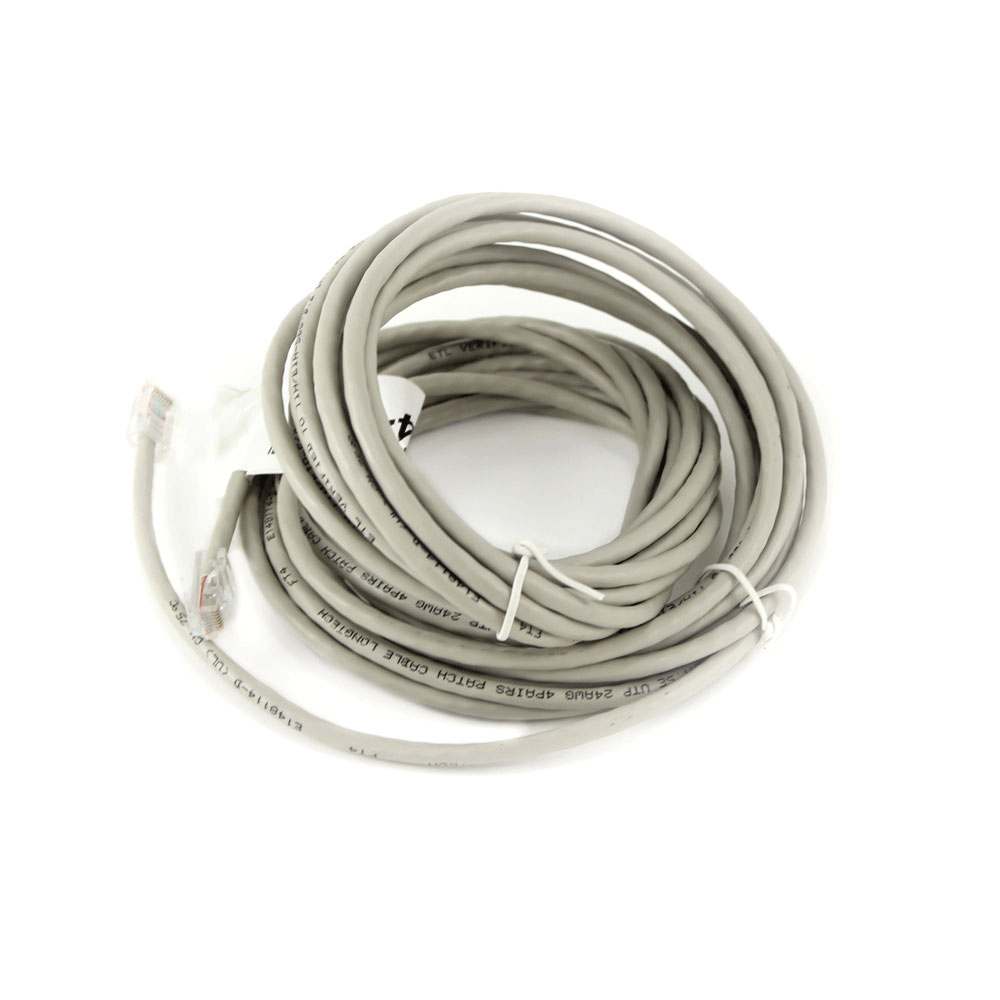

Amerec AK series steam shower generators can be linked in tandem to accommodate steam rooms larger than 550 adjusted cubic feet. Connection cables are sold separately, and each generator requires a comfortFlo steam head.
Engineered to withstand the most demanding steam rooms, the Amerec AK4.5 is perfect for residential and commercial bathing applications. AK series generators from Amerec provide safety, efficiency, and durability each bathing session. Amerec AK generators are available in a variety of power ratings to best suit your bathing needs.
The Amerec AK4.5 has a limited lifetime warranty and is fully serviceable. The AK 4.5 is UL, CSA, and CE listed for unparalleled quality and safety.
SteamSaunaBath is proud to be an authorized Amerec partner and offer the full line of Amerec generators.
SteamSaunaBath guarantees the lowest price. If you see a lower price advertised for this item elsewhere, give us a call!
- Sequential temperature control for soft steam
- Stainless steel tank
- Industrial grade, serviceable heating elements
- Durable electronic components
- Electronic water-level control system
- Low voltage safety control circuits
- Available Auto Drain automatic draining system
- Ability to field wire phase for 1-phase or 3-phase
- Ability to connect multiple generators to heat steam baths larger than 550 cubic feet
- Full 3/4" port drain valve
- ASME safety valve
- UL/CSA/CE listed
- 4.5kW steam bath generator
- Installation and operation manual
- Limited warranty
| Model | AK4.5 |
| Minimum Adjusted Cubic Feet | 60 |
| Maximum Adjusted Cubic Feet | 90 |
| Shipping Weight (Lbs.) | 35 lbs |
| Kilowatt Rating (KW) | 4.5 KW |
| Electrical Specifications | Electrical Chart |
| Water Supply Connection | 3/8" Compression Connection |
| Generator Steam Line Connection | 1/2" NPT |
| Steam Head Connection | 1/2" NPT |
| Drain Connection | 3/4" NPT |
| Safety Relief Valve Connection | 3/4" NPT |
| Safety Relief Valve PSIG | 10 PSIG |
| Control "Rough In" Cut Out | 2-3/8" Diameter |
| Generator Control Connection | 8 Pin, Snap-In Connector |
| Generator Control Cable | 25', 8 Conductor, 28 AWG, Shield Cable |
| Control Sensor "Rough In" Cut Out | 7/8" Diameter |
| Control Sensor Cable | 25', 2 Conductor, 22 AWG, Shielded Cable |
| Width In Inches | 16-1/2" |
| Depth In Inches | 6-1/4" |
| Height In Inches | 15" |

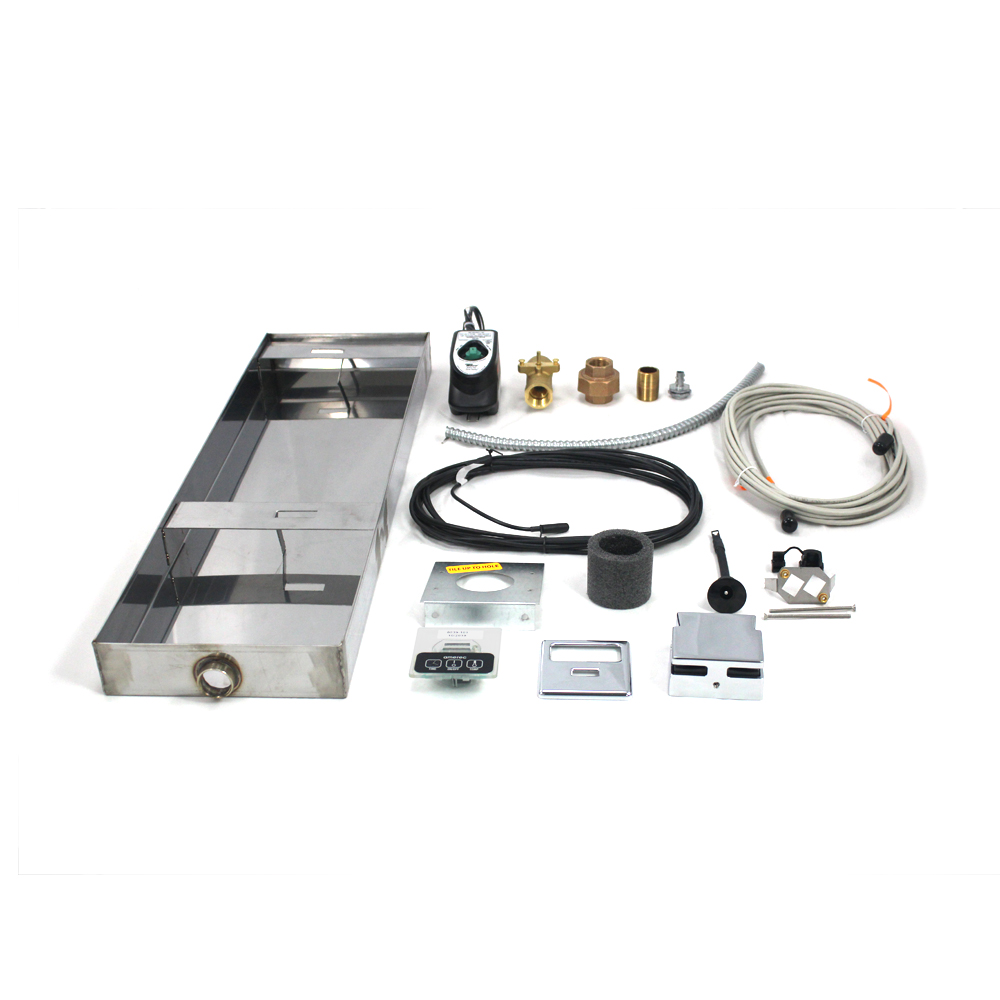

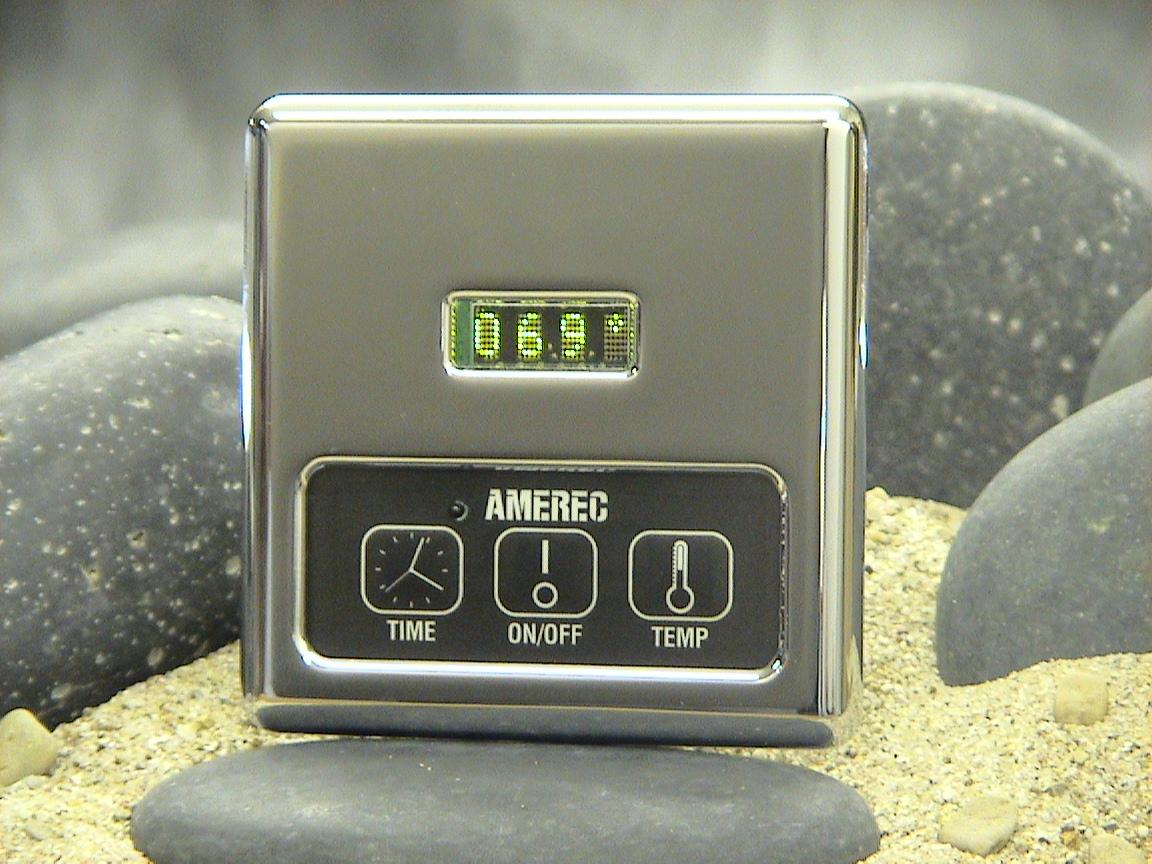

When installed with an Amerec AK Series steam generator, the Amerec K60 digital control package uses an easy-to-use touch pad to maintain the steam room environment.
When installed with an Amerec AK Series steam generator, the Amerec KT60 digital control package features an easy-to-use membrane touch pad to control the steam bath.

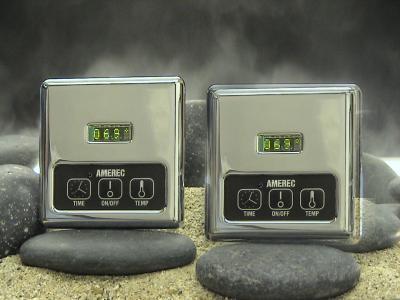

The Amerec DKT60/K60 steam shower package is designed to be installed with Amerec AK Series steam generators.

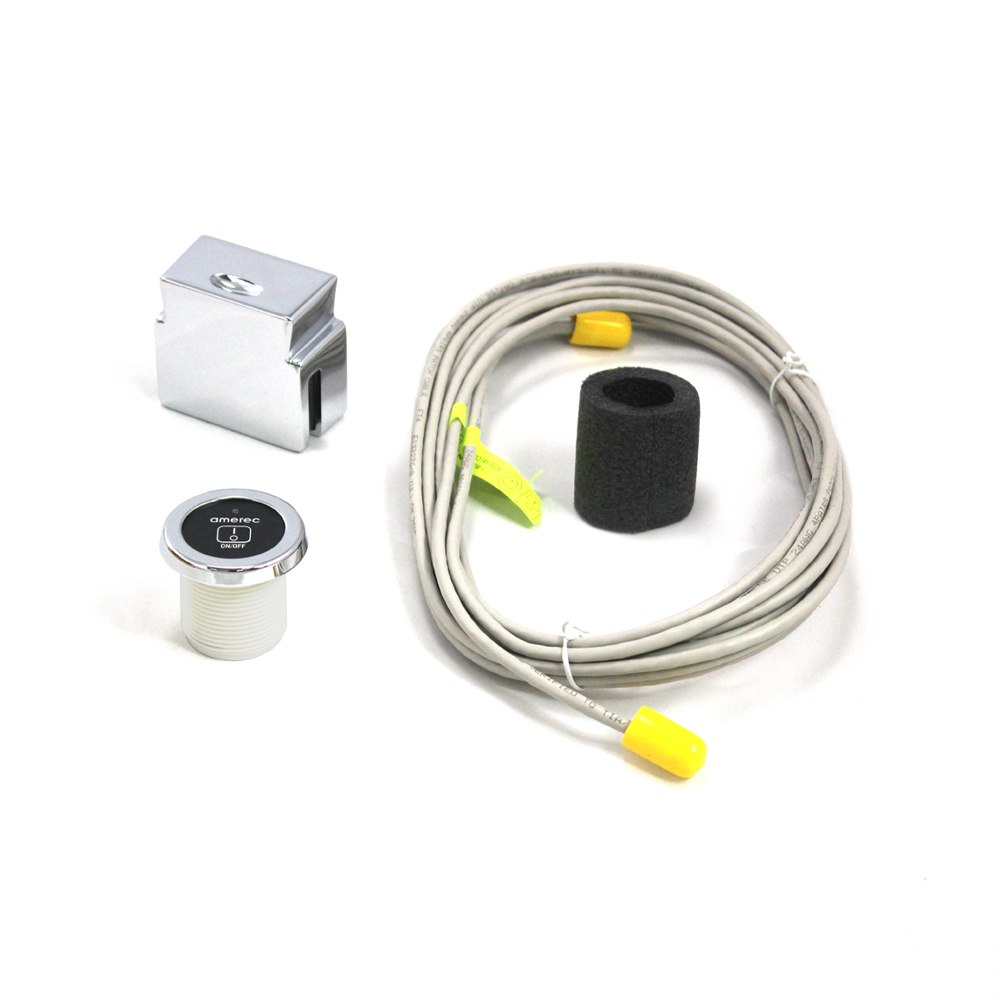

Designed to be installed with Amerec AK Series steam generators, the Amerec R30K steam shower control is an easy-to-use 30-minute press on timer with indicator light.
UKU Local sauna controller makes sauna heating easy and comfortable. It can be used with different manufacturers’ heaters.
Maximize your warranties!

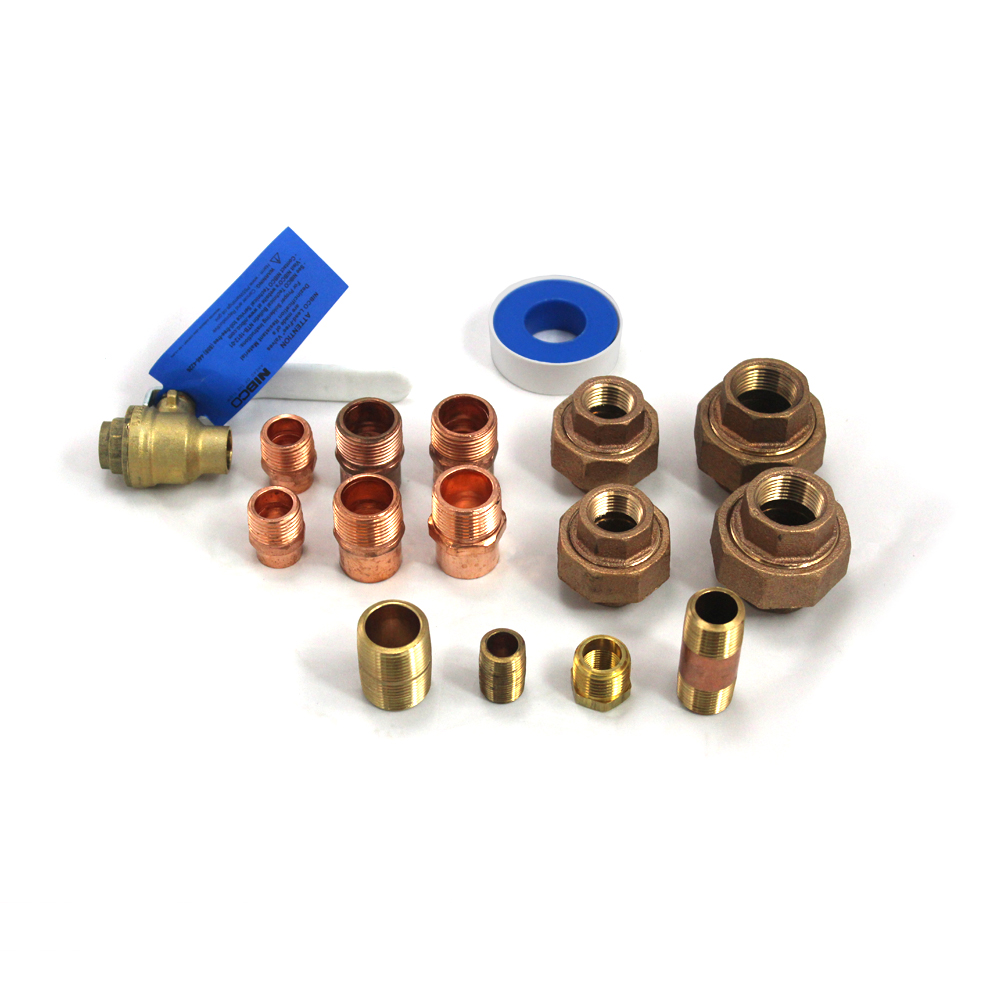

Quality plumbing fittings are the first step to ensuring a TROUBLE-FREE installation!
Maximize your warranties!
No need for frequent trips searching for those special electrical components.
UKU Local sauna controller makes sauna heating easy and comfortable. It can be used with different manufacturers’ heaters.
UKU Local sauna controller makes sauna heating easy and comfortable. It can be used with different manufacturers’ heaters.
Stylish and attractive, this CFSH ComfortFlo steam head with Insulator has been designed to provide a safe and pleasurable steam bath experience.

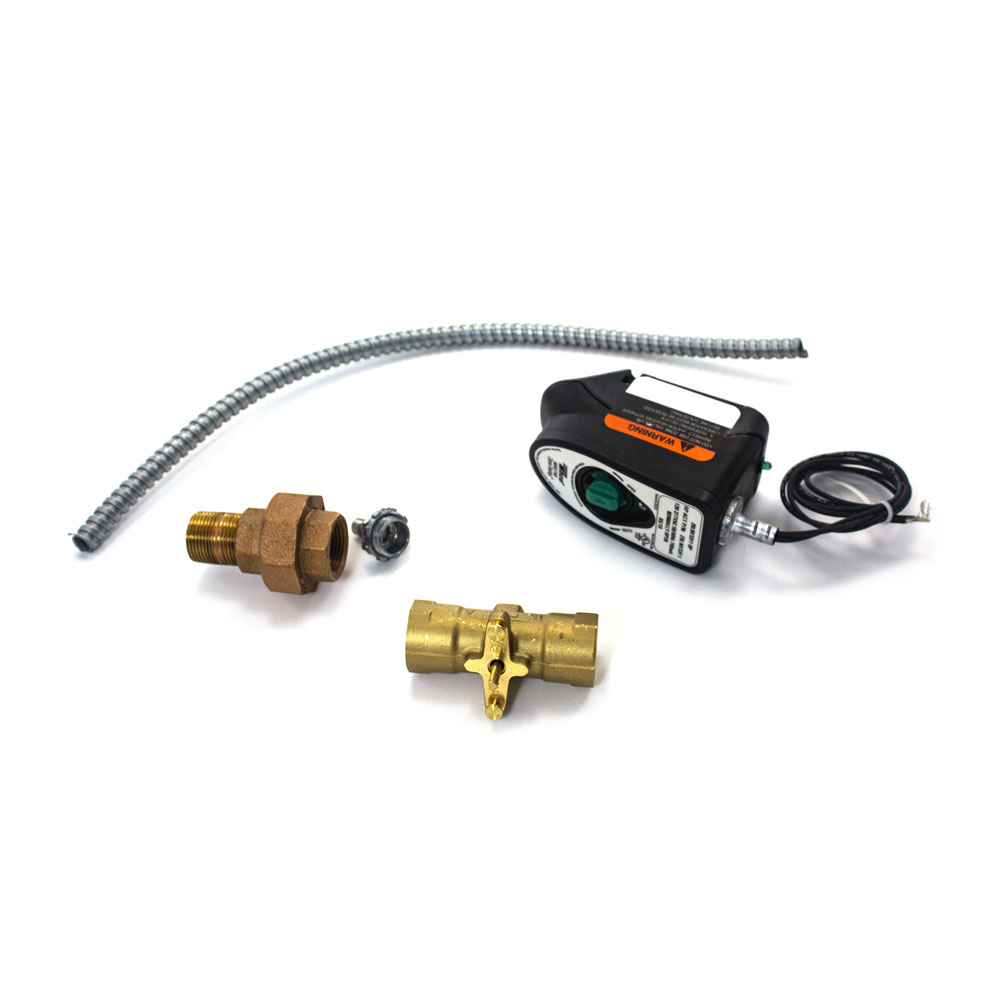

Automatic draining is available on any Amerec AK or 3K Series residential steam bath generator with the installation of this motorized, electronically operated model ADK drain valve.
A cleaner specially formulated for steam showers!
No mixing and ready to use, this 22-ounce convenient spray cleaner is all that is required to clean and sanitize your steam shower.
A cleaner specially formulated for steam rooms!
This powerful disinfectant cleaner kills mold, mildew and odor-causing fungi on contact.

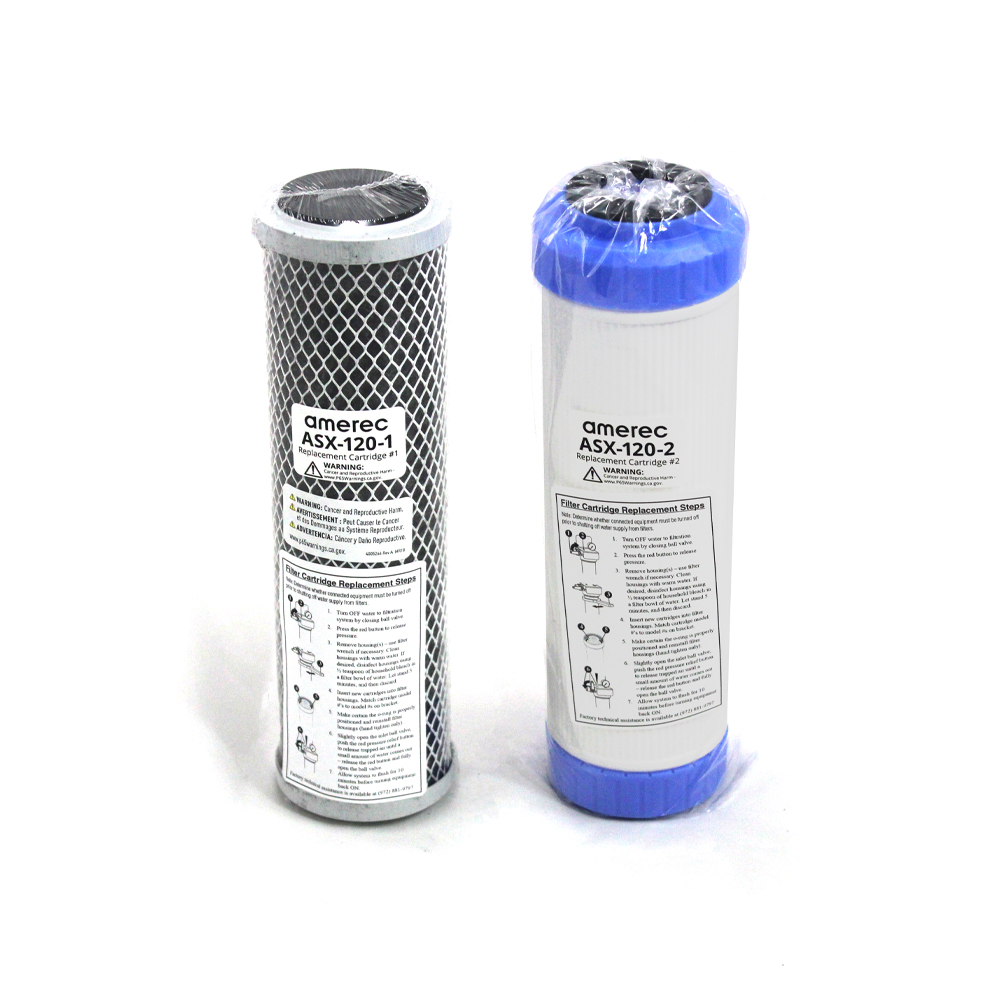

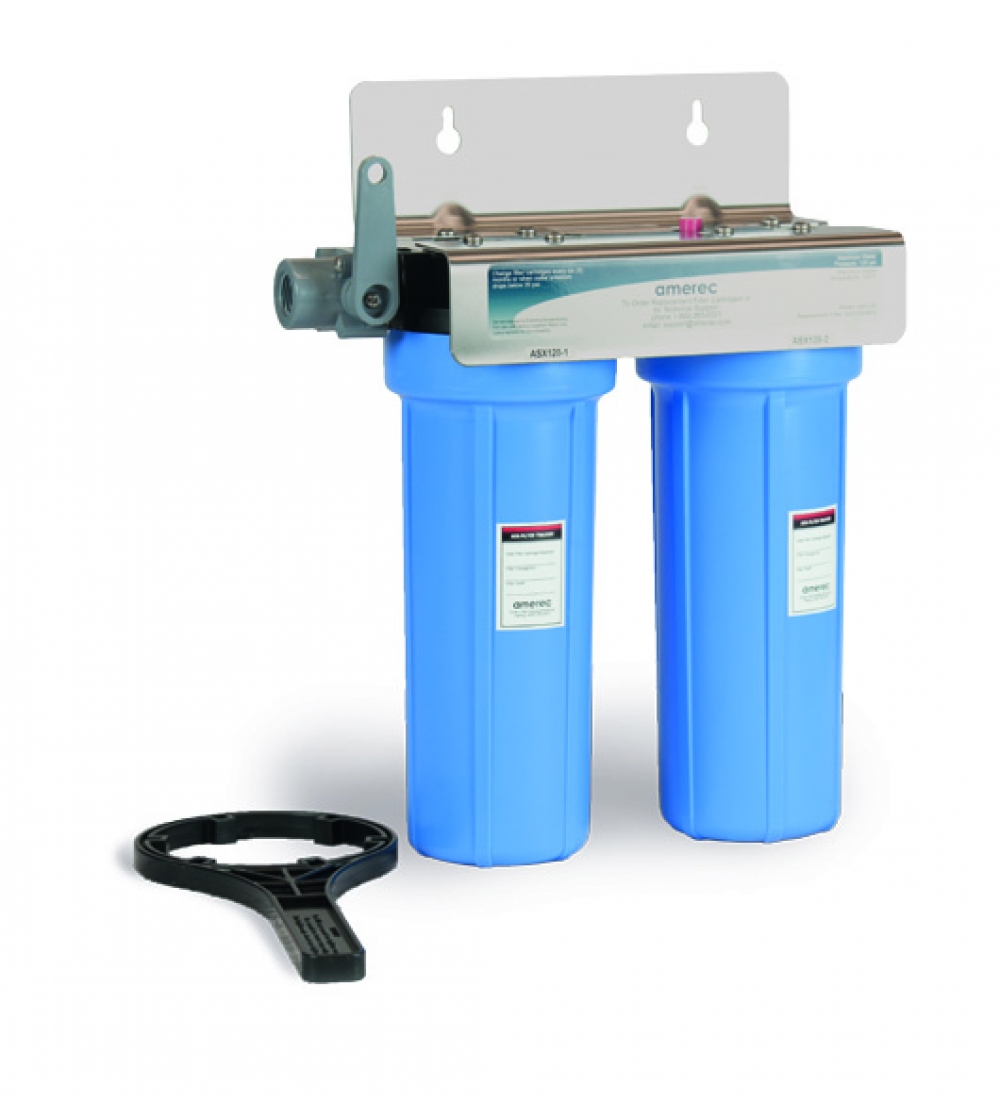

Water Filtration System, Amerec
